- Size: 10cbm capacity
- Place of Origin: Hebei
- Brand Name: QI LIN
- Model Number: QLG5200TSMGYY
- Weight: 11420.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

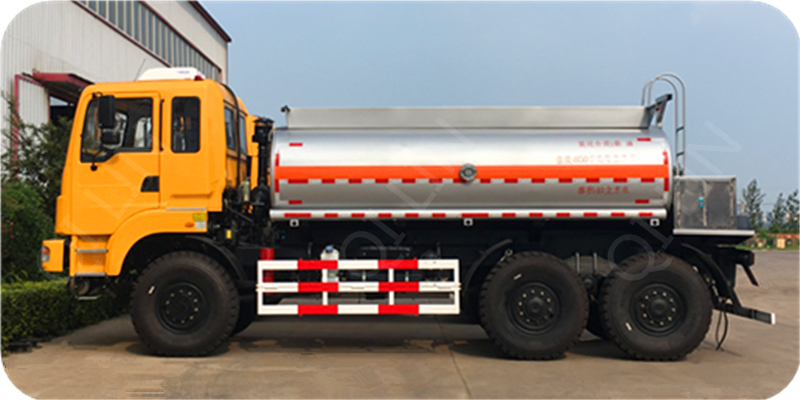

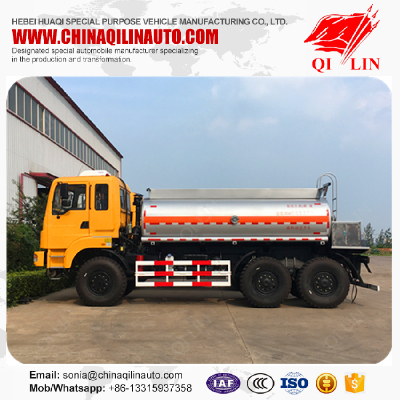

10CBM capacity desert oil tanker for diesel loading
Trade mark | Qilin Brand |
Model number | QLG5200TSMGYY |
Function | Load kerosene/diesel/gasoline |
Total weight | 19700kg |
Curb weight | 11420kg |
Max payload | 8150kg |
Tank volume | 10cbm |
Overall dimension | 8030mm*2500mm*3450mm |
Tank dimension | 4600mm*2250mm*1320mm |
Protective section material | Q235-A steel |
Protective section connect type | Screw bolt |
Rear protective section dimension | 100mm*50mm |
Height of lower edge to ground | 450mm |
Axle load | 6450kg/13250kg |
Number of axles | 3 pieces |
Wheelbase | 4000mm 1350mm |
Front/rear tread | 2100mm/2100mm |
Tire specification | 14.00R20 |
Number of tires | 6 pieces |
Front/rear suspension | 1680mm/1000mm |
Approach/departure angle | 35°/23° |
Max speed | 70km/h |
Braking system | |
Passengers allowed | 2 persons |
Electrical system | 24 voltage,7 ways(7 wire harness) |
Light | LED type |
Painting | Color is optional. |
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |
