- Size: 42cbm
- Place of Origin: Hebei,China
- Brand Name: QI LIN
- Model Number: QLG9406GYY
- Weight: 6700.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

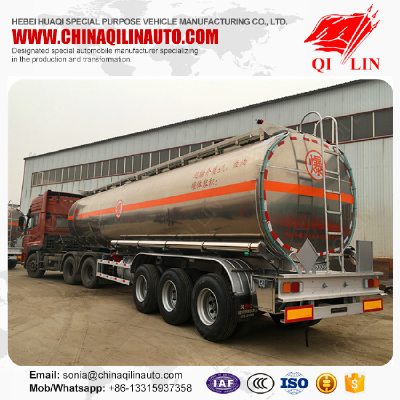

12 wheeler diesel gasoline petrol fuel Tanker semi trailer for sale
Brand | Qi Lin |
Model | QLG9406GYY |
Usage | Load kerosene/diesel/gasoline |
Total weight | 40000kg |
Tare weight | 6700kg |
Max payload | 33300kg |
Overall dimension | 11700mm*2500mm*3750mm |
Tank dimension | 11200mm*2410mm*2150mm |
Tank volume | 42cbm |
Tank material | |
Tank shape | Gooseneck type |
Side protective device | Q235 steel,screw bolt connection |
Rear protective device | Q235 steel,welding connection |
Bottom edge height | 520mm |
Axle | 24000kg payload/3pcs |
Tire | 11.00R20 12PR,12R22.5 12PR/12pcs |
Leaf spring number | -/10/10/10,-/9/9/9,-/13/13/13 |
Wheelbase | 6000mm 1305mm 1305mm |
Rear tread | 1840mm/1840mm/1840mm |
Rear suspension | 1540mm |
Departure angle | 20° |
Braking system | |
Electrical system | 24 voltage,7 wire harness. |
Light | LED type |
Painting | With shot blasting and 4 layers painting,color is optional. |
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |
