- Size: 5.1cbm
- Place of Origin: Hebei
- Brand Name: QI LIN
- Model Number: QLG5080GJY
- Weight: 3900.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

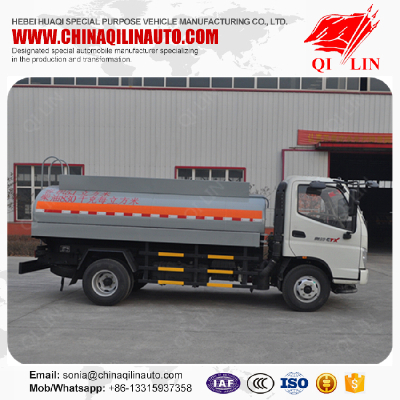

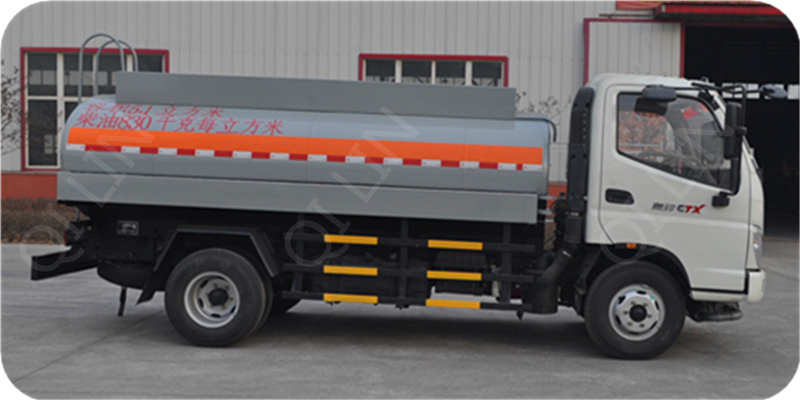

2 axles fuel tank truck for diesel/gasoline loading
Trade mark | Qilin Brand |
Model number | QLG5080GJY |
Function | Load diesel/gasoline |
Total weight | 8280kg |
Curb weight | 3900kg |
Max payload | 4185kg |
Tank volume | 5.1cbm |
Overall dimension | 5995mm*2050mm*2600mm |
Tank dimension | 4000mm*1640mm*1120mm |
Tank material | Q235-A steel plate |
Connection type | Screw bolt |
Passengers allowed | 3 persons |
Rear protective section dimension | 60mm*200mm |
Height of lower edge to ground | 490mm |
Axle load | 3.1tons/5.2tons |
Number of axles | 2 pieces |
Wheelbase | 3360mm |
Front/rear tread | 1710mm/1730mm |
Tire specification | 7.50R16 |
Number of tires | 6 pieces |
Front/rear suspension | 1120mm,1515mm |
Approach/departure angle | 22°/21° |
Fuel type | Diesel oil |
Braking system | With WABCO ABS system |
Electrical system | 24 voltage,7 ways(7 wire harness) |
Light | LED type |
Painting | Color is optional. |
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |
