- Size: 5.25cbm
- Place of Origin: Hebei
- Brand Name: QI LIN
- Model Number: QLG5060GJY-DH
- Weight: 3655.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

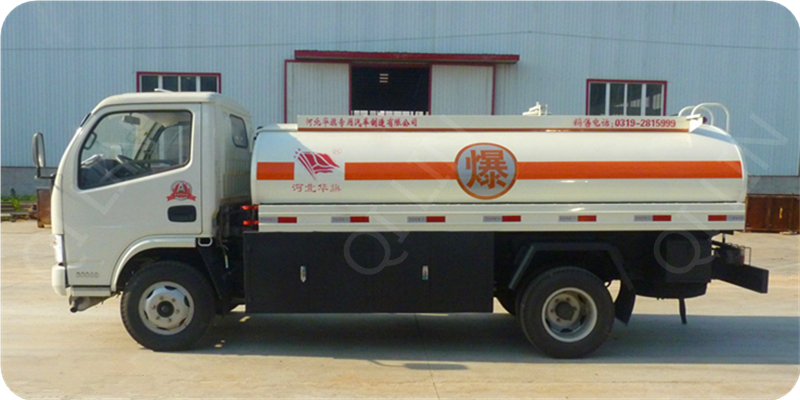

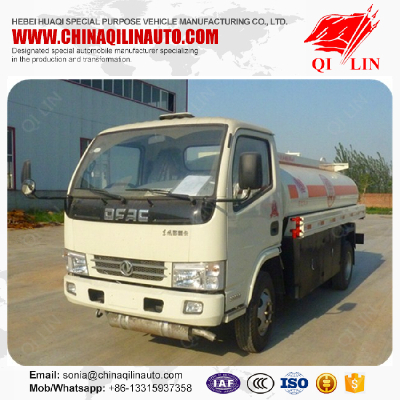

2 axles refueling tank truck with ABS braking system
Trade mark | Qilin Brand |
Model number | QLG5060GJY-DH |
Function | Load gasoline |
Total weight | 7350kg |
Curb weight | 3655kg |
Max payload | 3500kg |
Tank volume | 5.25cbm |
Overall dimension | 5995mmX1995mmX2450mm |
Tank dimension | 4080mmX1660mmX1160mm |
Tank material | Q235 steel |
Connection type | Screw bolt |
Passengers allowed | 3 persons |
Rear protective section dimension | 60mm*200mm |
Height of lower edge to ground | 550mm |
Axle load | 2350kg/5000kg |
Number of axles | 2 pieces |
Wheelbase | 3300mm |
Front/rear tread | 1586mm/1530mm |
Tire specification | 7.00R16 14PR, 7.50R16 14PR |
Number of tires | 6 pieces |
Front/rear suspension | 1115mm,1580mm |
Approach/departure angle | 27°/22° |
Fuel type | Diesel oil |
Braking system | With ABS system (36BG13-30010) |
Electrical system | 24 voltage,7 ways (7 wire harness) |
Light | LED type |
Painting | Color is optional. |
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |
