- Size: 20cbm capacity
- Place of Origin: Hebei
- Brand Name: QI LIN
- Model Number: QLG9405GRYB
- Weight: 8900.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

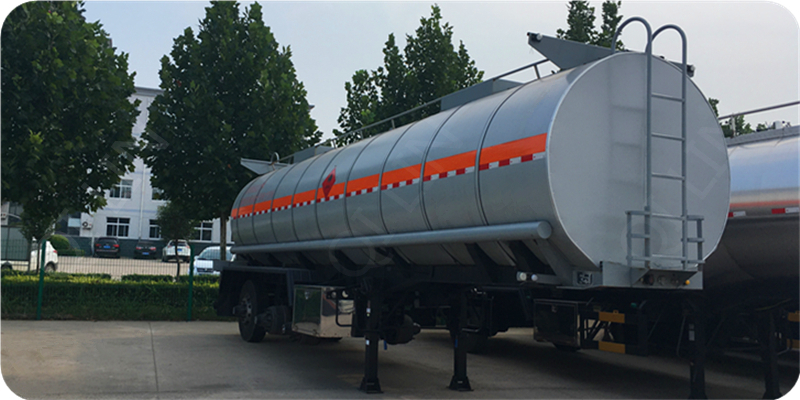

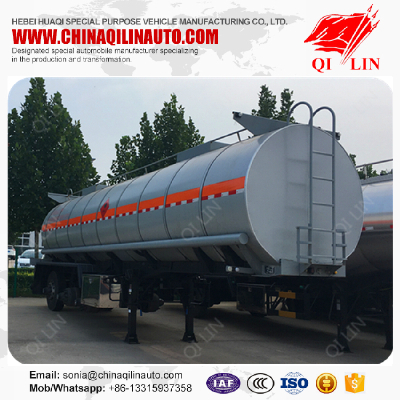

20 litters capacity tanker semi trailer for liquid sulphur loading
Trade mark | Qilin Brand |
Model number | QLG9405GRYB |
Function | Load liquid sulphur |
Total weight | 40000kg |
Curb weight | 8900kg |
Max payload | 31100kg |
Tank volume | 20cbm |
Overall dimension | 9800mm*2500mm*3600mm |
Tank insulation structure | 120mm thickness double insulating layers |
Protective section material | Q235 steel plate |
Side protection connect type | Screw bolt |
Rear protection connect type | Welding |
Rear protective section dimension | 140mm*60mm |
Height of lower edge to ground | 520mm |
Axle load | 24000kg |
Number of axles | 3 pieces |
Wheelbase | 4580mm 1300mm 1300mm |
Rear tread | 1840mm/1840mm/1840mm |
Tire specification | 11.00R20 12PR,12R22.5 12PR |
Number of tires | 12 pieces |
Rim specification | 8.0-20/12，9.0-22.5/12 |
Departure angle | 23° |
Rear suspension | 1300mm |
Braking system | With ABS system(CM2XL-4S/2M) |
Electrical system | 24 voltage,7 wire harness |
Light | LED type |
Painting | Color is optional. |
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |
