Product Details
- Size: 31cbm
- Place of Origin: Hebei
- Brand Name: QI LIN
- Model Number: QLG9403GNY
- Weight: 9000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
High quality tank trailer With Low Price

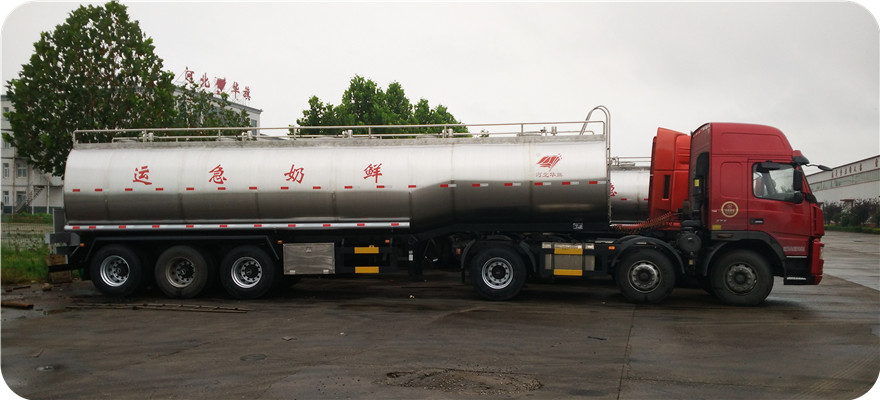

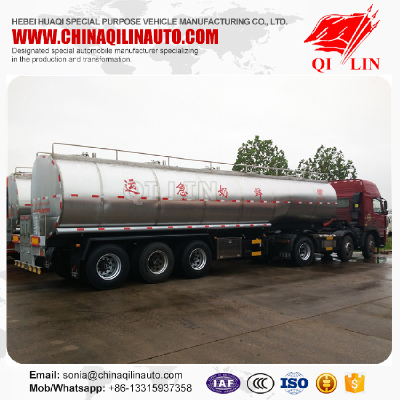

| 2015 Cheap price milk tank trailer for MIlk transportation | |||||||||
| Trailer Model | QLG9403GNY | ||||||||
| Function | Load Milk | ||||||||
| Overall dimension | 11250*2500*3850mm | ||||||||
| Tank Body | 10850*2490*2000mm | ||||||||
| Max payload | 40cbm (40 Ton) | ||||||||
| Curb weight | 9.5 Ton | ||||||||
| Tank | 304stainless steel ,6mm Tanker body/shell end/ washboard | ||||||||
| Main Beam | down plate is 12mm,middle plate is 6 mm, | ||||||||
| Compartment | silo | ||||||||
| Bottom valve | aluminuim alloy 1 pcs | ||||||||
| Running constructon | |||||||||
| Axle | Fuwa 13T | ||||||||
| Axle Number | 3 pieces | ||||||||
| tyre | 11.00R20 | ||||||||
| Number of Tyre | 13 pieces ( 1 spare tire included) | ||||||||
| rim | 8.0-22.5/13 | ||||||||
| Twist lock | 12 pieces | ||||||||
| leaf-spring | 90width*10pieces*13mm/6 sets | ||||||||
| Kingpin | interchangeable 90# /50# | ||||||||
| Landing gear | 28T Made in China | ||||||||
| suspension | Mechanical suspension | ||||||||
| Tool box | 1 pcs standard | ||||||||
| Braking system | with ABS system made in China | ||||||||
| Electrical system | 24 voltage | ||||||||
| 7 ways(7 wire harness) | |||||||||
| Light | LED type | ||||||||
| Packing | Nude,Polish with Wax before Shipment | ||||||||
| Painting | Color is optional | ||||||||
| Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. | ||||||||
- Size: 31cbm
- Place of Origin: Hebei
- Brand Name: QI LIN
- Model Number: QLG9403GNY
- Weight: 9000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
