- Place of Origin: Hebei,China
- Brand Name: QI LIN
- Model Number: QLG9402CCY
- Weight: 92000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

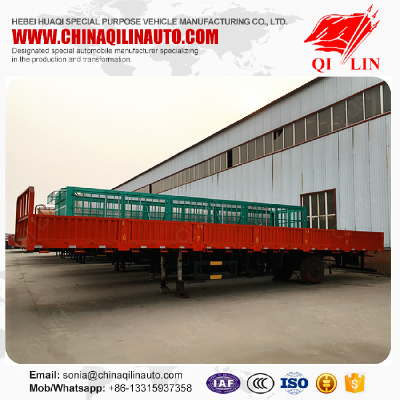

2017 new factory price tri-axle breast board semi trailer
Trailer dimension | |
Trailer Model | QLG9402CCY |
Function | Load container or bulk cargo |
Overall dimension | 12500mm*2600mm*3100mm |
Max payload | 50tons |
Curb Weight | 9.2tons |
Main beam | Q345b steel,500mm height.upper/down wing plate 18mm,middle plate 10mm |
Cross beam | 100*63*6mm I beam steel |
Side beam | 160mm channel steel |
Platform | 4mm checkered plate |
Box plate | 1000mm height,Q235 carbon steel,1.5mm thickness,fence height 500mm |
Frame and running construction | |
Axle | BPW 13T/3pcs |
Tire | |
Leaf-spring | 100mm*11mm*12pcs/6sets |
Kingpin | Interchangeable 50# 90# |
Landing gear | JOST C-200 |
Spare tire carrier | 2 units |
suspension | Mechanical suspension |
Braking system | With WABCO ABS system |
Water tank | 50L |
Tool Box | 1 No. |
Twist lock | 12 No. |
Electrical system | |
24 Volt Electrical system.7pin electrical connector.Parking stop,reverse,number plate and Indicator lights.rear lights conform to European standard. Rear front and side reflectors. | |
Packing | |
Nude, polish with water wax before shipment. | |
Remark | |
The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. | |
