- Size: 21.8cbm
- Place of Origin: Hebei
- Brand Name: QI LIN
- Model Number: QLG5120GYY
- Weight: 10230.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

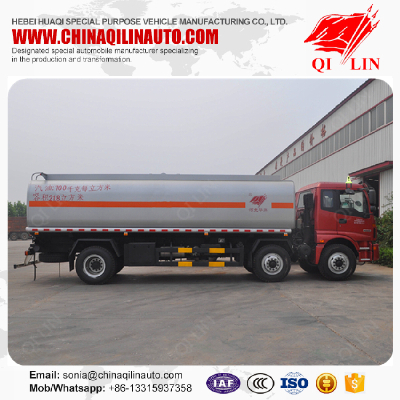

21800L volume oil tank truck for gasoline loading
Trade mark | Qilin Brand |
Model number | QLG5253GYY |
Function | Load gasoline |
Total weight | 25000kg |
Curb weight | 10230kg |
Max payload | 14575kg |
Tank volume | 21.8cbm |
Overall dimension | 10160mm*2500mm*3170mm |
Tank dimension | 7450mm*2370mm*1670mm |
Protective section material | Q235-A steel |
Protective section connect type | Screw bolt |
Passengers allowed | 3 persons |
Rear protective section dimension | 100mm*50mm |
Height of lower edge to ground | 420mm |
Axle load | 6750/6750/11500 |
Number of axles | 3 pieces |
Wheelbase | 1860mm/4800mm |
Front/rear tread | 1890mm/1847mm |
Tire specification | 11.00R20 |
Number of tires | 8 pieces |
Front/rear suspension | 1365mm/2135mm |
Approach/departure angle | 18°/11° |
Fuel type | Diesel oil |
Max speed | 80km/h |
Braking system | With WABCO ABS system |
Electrical system | 24 voltage,7 ways(7 wire harness) |
Light | LED type |
Painting | Color is optional. |
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |
