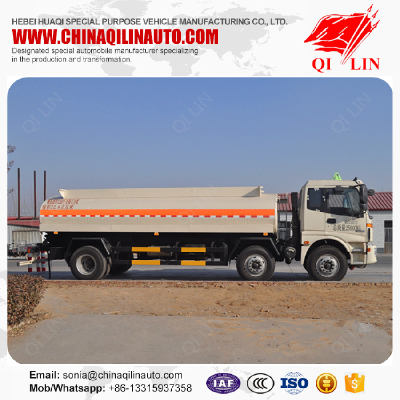

3 axles tank truck for liquid asphalt,scrubbing oil transportation
Trade mark | Qilin Brand |
Model number | QLG5253GRY |
Function | Load liquid asphalt,scrubbing oil |
Total weight | 25000kg |
Curb weight | 9430kg |
Max payload | 15375kg |
Tank volume | 12.9cbm |
Overall dimension | |
Tank dimension | 6900mm*2020mm*1320mm |
Tank material | Q235-A steel |
Connection type | Screw bolt |
Passengers allowed | 3 persons |
Rear protective section dimension | 100mm*50mm |
Height of lower edge to ground | 470mm |
Axle load | 6750kg/11500kg |
Number of axles | 3 pieces |
Wheelbase | 1860mm/4800mm |
Front/rear tread | 1890mm/1847mm |
Tire specification | |
Number of tires | 8 pieces |
Front/rear suspension | 1365mm/2175mm |
Approach/departure angle | 18°/12° |
Fuel type | Diesel oil |
Max speed | 80km/h |
Braking system | With WABCO ABS system |
Electrical system | 24 voltage,7 ways(7 wire harness) |
Light | LED type |
Painting | Color is optional. |
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |
