- Size: 30cbm
- Place of Origin: Hebei
- Brand Name: QI LIN
- Model Number: QLG9400GFW
- Weight: 9500.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

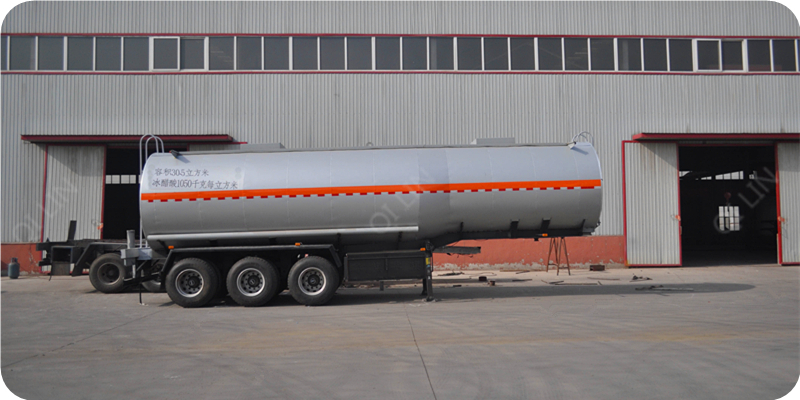

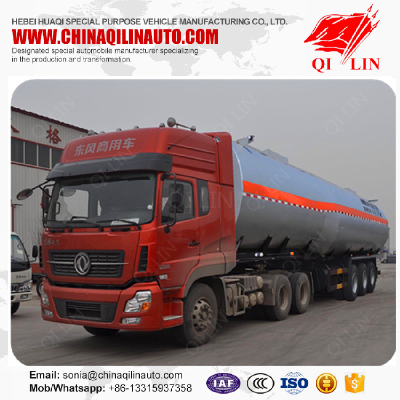

30cbm tank semi trailer for corrosive liquid loadin
Trade mark | Qilin Brand |
Model number | QLG9400GFW |
Function | Load Acetic acid/Glacial acetic acid |
Total weight | 40tons |
Curb weight | 9.5tons |
Tank volume | 30cbm |
Overall dimension | 10800mm*2500mm*3980mm |
Tank dimension | 10200mm*2400mm*2200mm |
Tank material | Q235 steel plate |
Tank type | Goose-neck type |
Insulating layer thickness | 100mm |
Rear protective section dimension | 140mm*60mm |
Lower edge height to ground | 520mm |
Axle load | 24tons |
Number of axles | 3 pieces |
Wheelbase | 5230mm 1310mm 1310mm |
Rear tread | 1840mm/1840mm/1840mm |
Tire specification | 11.00R20 12PR,12R22.5 12PR |
Number of tires | 12 pieces |
Rim specification | 8.0-20/12，9.0-22.5/12 |
Departure angle | 22° |
Rear suspension | 1500mm |
Braking system | With ABS system(CM2XL-4S/2M) |
Electrical system | 24 voltage,7 ways(7 wire harness) |
Light | LED type |
Painting | Color is optional. |
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |
