- Size: 36cbm
- Place of Origin: Hebei
- Brand Name: QI LIN
- Model Number: QLG9400GRH
- Weight: 9480.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

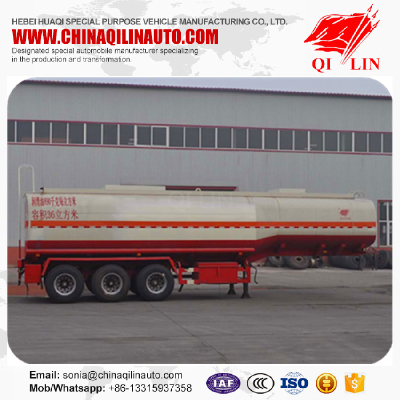

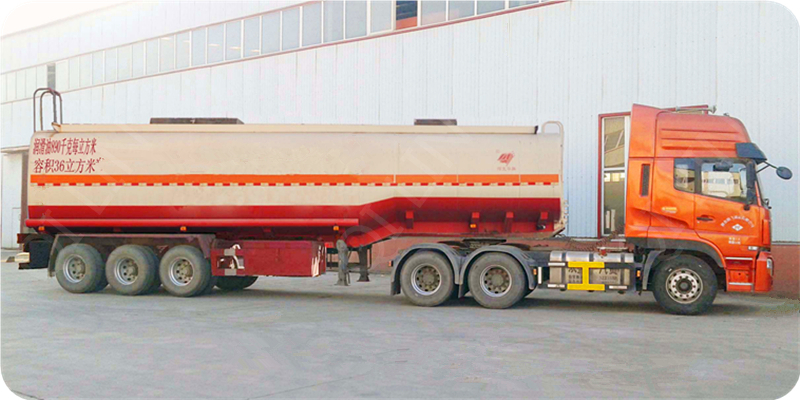

36cbm capacity tank semi trailer for lubricating oil loading
Trade mark | Qilin Brand |
Model number | QLG9400GRH |
Function | Load lubricating oil |
Total weight | 40000kg |
Curb weight | 9480kg |
Max payload | 30520kg |
Tank volume | 36cbm |
Overall dimension | 11300*2500*3900mm |
Tank dimension | 10930*2490*2000mm |
Tank material | Q235 steel plate |
Tank type | Goose-neck type |
Rear protective section dimension | 140mm*60mm |
Lower edge height to ground | 520mm |
Axle load | 24000kg |
Number of axles | 3 pieces |
Wheelbase | 5670mm 1310mm 1310mm |
Rear tread | 1840mm/1840mm/1840mm |
Tire specification | 11.00R20 12PR,12R22.5 12PR |
Number of tires | 12 pieces |
Rim specification | 8.0-20/12,9.0-22.5/12 |
Departure angle | 22° |
Rear suspension | 1300mm |
Braking system | With ABS system(CM2XL-4S/2M) |
Electrical system | 24 voltage,7 ways(7 wire harness) |
Light | LED type |
Painting | Color is optional. |
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |
- Size: 36cbm
- Place of Origin: Hebei
- Brand Name: QI LIN
- Model Number: QLG9400GRH
- Weight: 9480.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
