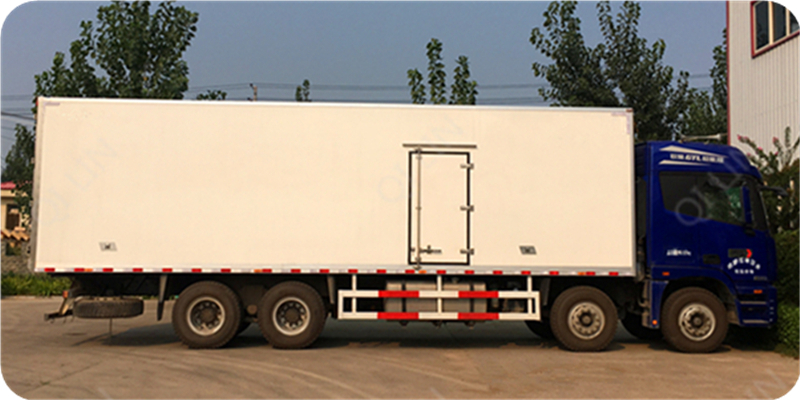

4 axles refrigerator van truck for meat and fish loading
Trade mark | Qilin Brand |
Model number | QLG5043XLC |
Function | Load food |
Total weight | 31000kg |
Curb weight | |
Max payload | 17270kg |
Overall dimension | 11995mm*2550mm*3995mm |
Box dimension | 9135mm*2335mm*2480mm |
Protective section material | Q235 steel |
Protective section connect type | Screw bolt |
Rear protective section dimension | 140mm*70mm |
Height of lower edge to ground | 500mm |
Axle load | 6500kg/6500kg/18000kg |
Number of axles | 4 pieces |
Wheelbase | 1800mm 4700mm 1350mm |
Front/rear tread | 2120mm/1860mm |
Tire specification | 11.00R20 |
Number of tires | 12 pieces |
Front/rear suspension | 1450mm/2695mm |
Approach/departure angle | 17°/10° |
Fuel type | Diesel oil |
Max speed | 100km/h |
Braking system | With ABS system(3550X-1010) |
Electrical system | 24 voltage,7 wire harness |
Light | LED type |
Painting | Color is optional. |
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |
