- Place of Origin: Hebei
- Brand Name: QI LIN
- Model Number: QL9400TJZ
- Weight: 7000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

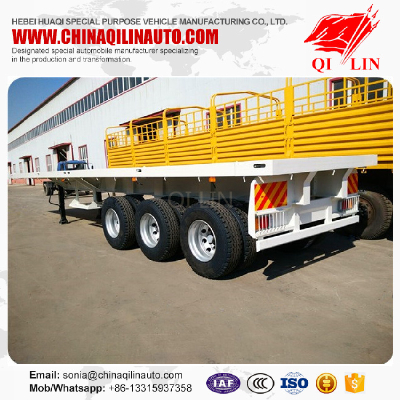

40 ft flatbed container semi trailer with 3 axles
Dimension | |
Trailer model | QL9400TJZ |
Function | Load 2*20ft or 1*40ft container |
Overall dimension | 12350mm*2500mm*1550mm |
Max payload | 35000kg |
Curb weight | 7000kg |
Platform | 3mm steel checkered plate |
Main beam | The height of the beam is 500mm,upper plate is 20mm, down plate is 20mm,middle plate is 10 mm. |
Cross beam | 100mm channel steel |
Side beam | 160mm channel steel |
Running construction | |
Axle | BPW 13T |
Number of axles | 3 pieces |
Tire | Triangle 315/65R22.5 |
Number of tires | 12 pieces |
Rim | 8.5-22.5 /12 pcs |
Twist lock | 12 pieces |
Kingpin | Interchangeable 90# /50# |
Leaf spring | 100mm*11mm*12pieces/6sets |
Landing gear | 28T made in China |
Suspension | German suspension |
Diesel tank | 1000L |
Tool box | 1 piece |
Braking system | With WABCO ABS system |
Electrical system | 24 voltage, 7 ways(7 wire harness) |
Light | LED type |
Packing | Nude,polish with wax before Shipment. |
Painting | Color is optional. |
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |
- Place of Origin: Hebei
- Brand Name: QI LIN
- Model Number: QL9400TJZ
- Weight: 7000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
