- Size: 50 cbm
- Place of Origin: Hebei,China
- Brand Name: QI LIN
- Model Number: QLG9401GFL
- Weight: 10000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

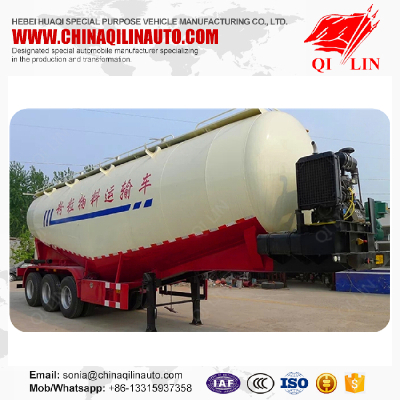

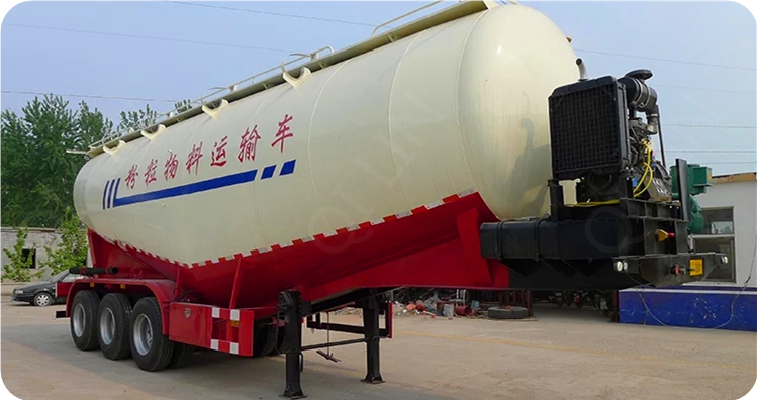

50cbm bulk cement tanker semi trailer with electric engine
Trade mark | Qilin Brand |
Model number | QLG9401GFL |
Function | Load powder material |
Curb weight | 10 tons |
Max payload | 60 tons |
Tank volume | 50 cbm |
Overall dimension | 12000mm*2500mm*3600mm |
Protective section material | Q235 steel |
Side protection connect type | Screw bolt |
Rear protection connect type | Welding |
Rear protective section dimension | 140mm*60mm |
Height of lower edge to ground | 550mm |
Axle load | 24000kg |
Axle specification | Fuwa 13T/3 pcs |
Wheelbase | 7930mm 1310mm 1310mm |
Rear tread | 1840mm/1840mm/1840mm |
Tire specification | 12R22.5 12PR/12pcs |
Rim specification | 9.0-22.5/12 pcs |
Departure angle | 33° |
Suspension | Mechanical suspension |
Braking system | With ABS system |
Electrical system | 24 voltage,7 ways(7 wire harness) |
Light | LED type |
Painting | With shoot blasting,and 4 layers painting. |
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |
