- Size: 43cbm
- Place of Origin: Hebei,China
- Brand Name: QI LIN
- Model Number: QLG9404GYY
- Weight: 6800.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

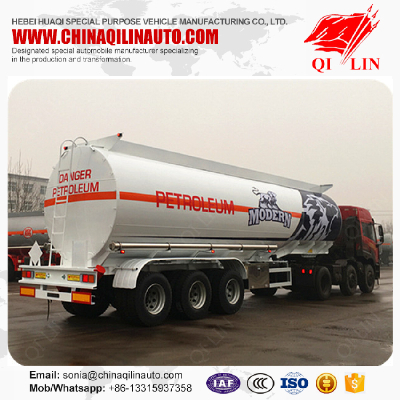

Aluminum alloy oil tank semi trailer with mechanical suspension
Brand | Qi Lin |
Model | QLG9404GYY |
Usage | Load diesel,fuel |
Tare weight | 6800kg |
Max payload | 35000kg |
Tank volume | 43cbm |
Tank material | 5083 aluminum alloy |
Overall dimension | 11500mm*2500mm*3800mm |
Main beam | T-structure 6061 aluminum alloy,down plate is 12mm, middle plate is 10mm. |
Tank compartments | 13000L,17000L,13000L/3 compartments |
Tank thickness | Tank body is 6 mm,front/end plate is 6mm, baffle is 6mm. |
Manhole cover | Diameter 450mm-500mm/2pcs |
Axle | BPW 13T/3pcs |
Tire | 315/80R22.5/12pcs |
Rim | 9.0-20/12pcs |
Kingpin | Interchangeable 50#/90# |
Landing gear | JOST C200 |
Suspension | German mechanical suspension |
Leaf spring | 100mm*11mm*12pcs/6sets |
Discharge valve | DN100/1pc |
Discharge pipe | 8 meters each side tube/2pcs |
Fire extinguisher number | 2pcs |
Spare tire carrier | 1 standard |
Water tank | 30L |
Tool box | 1 standard |
Braking system | With WABCO ABS system |
Electrical system | 24 voltage,7 wire harness. |
Light | LED type |
Painting | With shot blasting and 4 layers painting,color is optional. |
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |
