- Place of Origin: Hebei,China
- Brand Name: QI LIN
- Model Number: QLG9403CCY
- Weight: 7000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

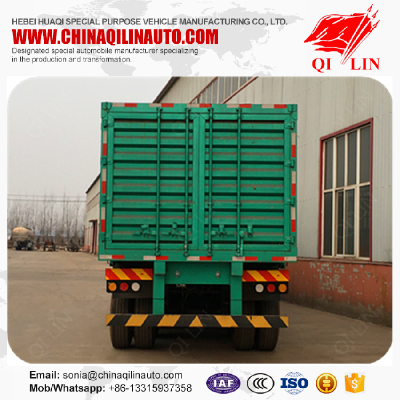

Cheap price 12 wheels cargo box fence semi trailer
Brand | Qi Lin |
Model | |
Function | Load container or bulk cargo |
Total weight | 40000kg |
Tare weight | 7000kg |
Max payload | 33000kg |
Overall dimension | 13000mm*2500mm*3800mm |
Wagon box dimension | 12850mm*2400mm*600mm |
Protective device | Q235 steel,welding connection |
Bottom edge height | 500mm |
Axle | 24000kg payload/3pcs |
Tire | 11.00R20 12PR,12R22.5 12PR/12pcs |
Leaf spring number | -/10/10/10,-/9/9/9,-/13/13/13 |
Wheelbase | 6590mm 1305mm 1305mm |
Rear tread | 1840mm/1840mm/1840mm |
Departure angle | 15° |
Rear suspension | 2400mm |
Braking system | With ABS system(CM2XL-4S/2M) |
Electrical system | 24 voltage,7 wire harness. |
Light | LED type |
Painting | With shot blasting,and 4 layers painting,color is optional. |
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |
