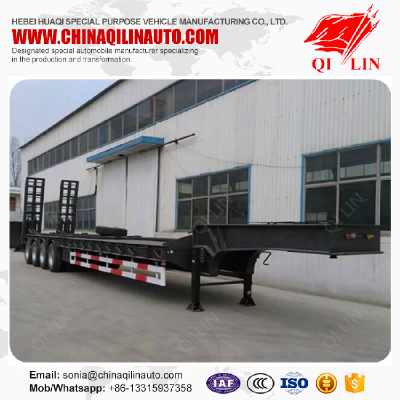

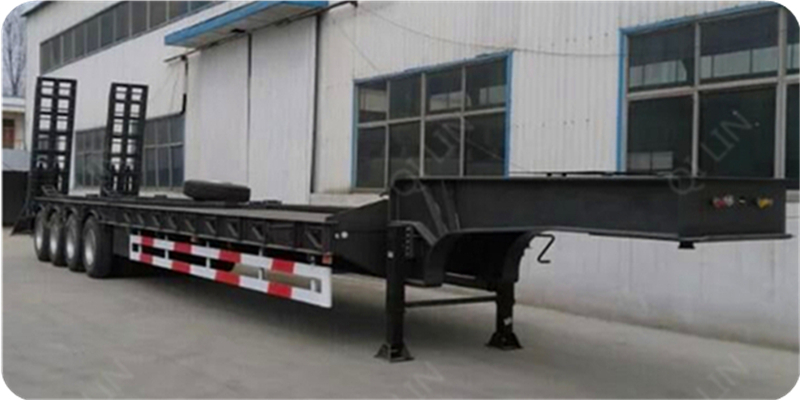

Cheap price 4 axles 80T payload low bed semi trailer
Trailer model | QLG9402TYY |
Function | Load heavy duty machinery |
Overall dimension | 14000mm*3000mm*1650mm |
Main beam | 500mm height ,upper/down plate is 18/20mm, double middle plate is 10mm |
Max payload | 80 tons |
Curb weight | |
Side beam | 200mm I-beam steel |
Rear ladder | Manual type/2 pcs |
Axle | Fuwa 13T/4 pcs |
Tire | 11.00R20/16 pcs |
Rim | |
Twist lock | 4 pcs |
Leaf spring | 90width*10pcs*13mm/8 sets |
Kingpin | Interchangeable 90# /50# |
Landing gear | 28T standard made in China |
Suspension | Mechanical suspension |
Tool box | 1 pc standard |
Braking system | with ABS system made in China |
Electrical system | 24 voltage,7 ways(7 wire harness) |
Light | LED type |
Packing | Nude,polish with wax before shipment |
Painting | with shoot blasting,and 4 layers painting |
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |
