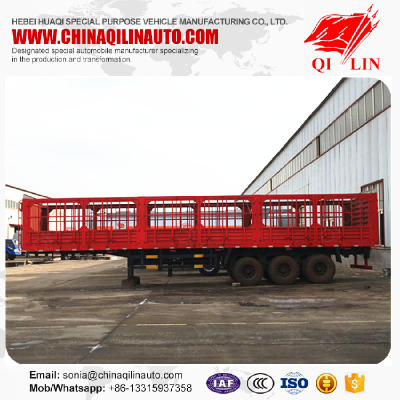

China Hebei low price 3 axles skeletal van semi trailer

China Hebei low price 3 axles skeletal van semi trailer

  • Min.Order Quantity: 1 Unit
  • Supply Ability: 300 Units per Month
  • Port: Tianjin
  • Payment Terms: L/C,D/P,T/T,Western Union
Get Latest Price:
  • *Quantity: Unit/Units
| Factory
Experience:2004-12-22
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  Hebei,China
  • Brand Name:  QI LIN
  • Model Number:  QLG9403CCY
  • Weight: 7000.000 kg

China Hebei low price 3 axles skeletal van semi trailer

Brand

Qi Lin

Model

QLG9403CCY

Function

Load container or bulk cargo

Gross weight

40tons

Curb weight

7tons

Max payload

33tons

Overall dimension

13000mm*2500mm*3800mm

Wagon box dimension

12850mm*2400mm*600mm

Protective section material

Q235 steel

Side protection connect type

Welding

Rear protection connect type

Welding

Rear protective section dimension

120mm*60mm

Height of lower edge to ground

520mm

Axle load

24tons

Number of axles

3 pieces

Wheelbase

6590mm 1305mm 1305mm

Rear tread

1840mm/1840mm/1840mm

Tire specification

12R22.5 12PR

Number of tires

12 piece

Rim specification

9.0-22.5/12

Departure angle

15°

Rear suspension

2400mm

Braking system

With ABS system(CM2XL-4S/2M)

Electrical system

24 voltage,7 ways(7 wire harness)

Light

LED type

Painting

With shot blasting,and 4 layers painting,color is optional.

Remark

The above mentioned data is for your reference only.

The detailed specification will be subject to our final confirmation.






  • Place of Origin:  Hebei,China
  • Brand Name:  QI LIN
  • Model Number:  QLG9403CCY
  • Weight: 7000.000 kg
