- Size: 5.4cbm
- Place of Origin: Hebei
- Brand Name: QI LIN
- Model Number: QLG5070GJY
- Weight: 3560.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

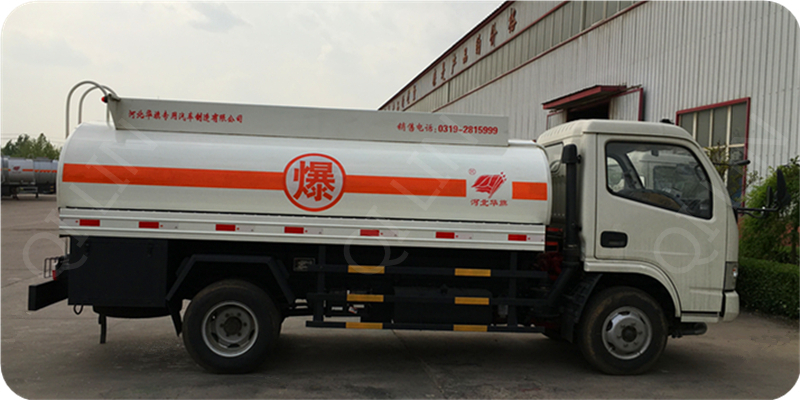

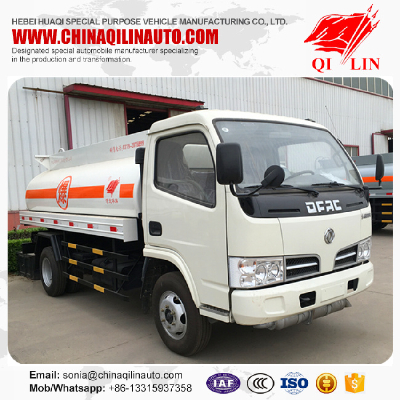

China Qilin Brand refueling tank truck with good product quality
Trade mark | Qilin Brand |
Model number | |
Function | Load light fuel |
Total weight | 7360kg |
Curb weight | 3560kg |
Max payload | 3670kg |
Tank volume | 5.4cbm |
Overall dimension | |
Tank dimension | 3980mm*1730mm*1190mm |
Tank material | Q235-A steel |
Connection type | Screw bolt |
Passengers allowed | 2 persons |
Rear protective section dimension | 60mm*200mm |
Height of lower edge to ground | 470mm |
Axle load | 2.4tons/5tons |
Number of axles | 2 pieces |
Wheelbase | 3308mm |
Front/rear tread | 1620mm/1395mm |
Tire specification | 7.00R16 |
Number of tires | 6 pieces |
Front/rear suspension | 1105mm,1582mm |
Approach/departure angle | 23°/22° |
Fuel type | Diesel oil |
Braking system | With WABCO ABS system(ABS-E 4S/4M) |
Electrical system | 24 voltage,7 ways(7 wire harness) |
Light | LED type |
Painting | Color is optional. |
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |
