- Guaranteed Secure Payments on Every Order
- Refund if your item is not delivered or as described
- Buyer Protection after order confirmation
- Size: 8.2cbm capacity
- Place of Origin: Hebei
- Brand Name: QI LIN
- Model Number: QLG5111GJY
- Weight: 4800.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

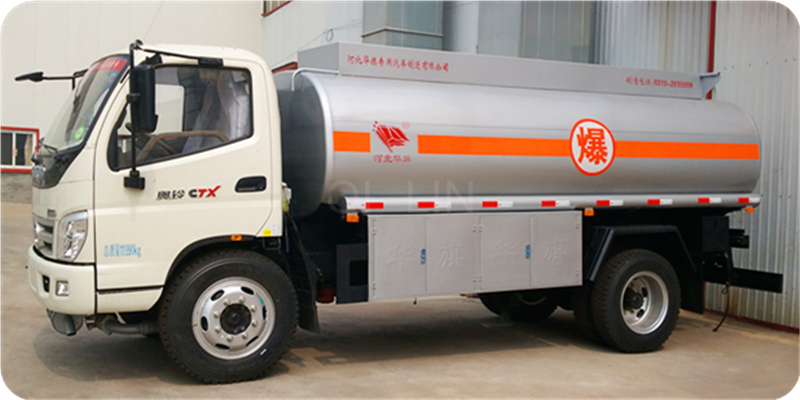

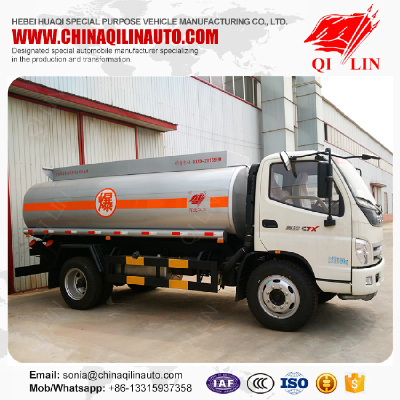

Euro 3 emission wheelbase 3800mm 8cbm oil refuel tank truck
Brand | Qi Lin |
Model | QLG5111GJY |
Usage | For fuel transportation and refilling |
Total weight | 11495kg |
Tare weight | 4800kg |
Max payload | 6500kg |
Tank volume | 8.2cbm |
Overall dimension | 7000mmX2150mmX2650mm |
Tank dimension | 4800mmX1920mmX1280mm |
Protective device | Q235-A steel,screw bolt connection |
Bottom edge height | 470mm |
Axle | 4600kg/6895kg payload/2pcs |
Tire | 8.25R20 14PR/6pcs |
Leaf spring number | 8/10 7 |
Front/rear tread | 1903mm/1640mm |
Front/rear suspension | 1130mm/2070mm |
Wheelbase | 3800mm |
Approach/departure angle | 20°/17° |
Braking system | With ABS system (ABS/ASR-24V-4S/4M) |
Emission | CY4SK251,3856ml displacement,154hp |
Fuel consumption | 23.6L/100Km |
Fuel type | Diesel |
Max speed | 80km/h |
Cab passenger number | 3 persons |
Electrical system | 24 voltage,7 wire harness. |
Light | LED type |
Painting | |
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |
Packaging & Shipping
1.Nude,polish with water wax before shipment.
2.40HQ,Ro-Ro ship and bulk ship transport.
Our Services
1.Our engineer will go to your side when the semi trailer goes something wrong.
2.Any parts of the semi trailer will be send to you as soon as possible.
3.Technology consulting are appreciated all the time.
Company Introduction
1.Hebei Huaqi Special Purpose Vehicle Manufacturing Co., Ltd. was established in 1956,with more than 60 years trailer making experiences.
2.We have more than 300 employees,including 24 technical engineers,18 senior engineers.
3.We are one of the largest manufacturers in China,we have passed ISO9001:2008,CCC,SGS,UL certificates.
4."Qi Lin" Brand is a famous brand in Hebei province ,China.
Welcome you to visit our factory !
1.We can pick up you in the airport port;
2.Book the hotel for you;
3.Show you around the workshop and production line;
4.We can supply the truck parts;
5.We can supply the stock trucks if you need the trucks urgently.
FAQ
1. Can I have samples of this type of trailer to test the quality?
Yes, you can buy any sample to test the quality,our MOQ is 1 unit.
2. What's the delivery time and can you lower the price?
It depends on your order. The delivery time is within 15 workdays after we received your prepayment. If you have place an order of large quantities, then ,of course, the price can be lowered.
3. Can you supply some quick-wear trailer parts?
Yes, we can supply the trailer parts as your request,such as traction, traction pin, balance beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads, brake pan, bearings, etc
4. What's the payment method?
TT 30% as deposit, balance before shipment by TT or L/C at sight.
5.Do you have any used trailer for sale?
We have many trailers in stock for choices, from 2012-2016 year, the price are favorable,we'll show you our stock trailer if you need.
6. How to guarantee customers get the goods smoothly after they pay?
Don’t worry, dear. We joined the trade assurance,you can place the order by trade assurance,if we don’t delivery products, the deposit will return to you.
7. How can you ensure the quality of the products?
Don’t worry, dear. We joined the trade assurance,if the products have quality problem when you received the goods, you can receive advance payments.
Contact
TEL/FAX: 0086-319-2815112
MOB: 0086-13315937358
WEB: www.chinaqilinauto.com
ADD: East of Huolou Village,Huining Town,Xingtai County,Xingtai City, Hebei Province,China.
