- Size: 50cbm
- Place of Origin: Hebei,China
- Brand Name: QI LIN
- Model Number: QLG9401GFL
- Weight: 11500.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

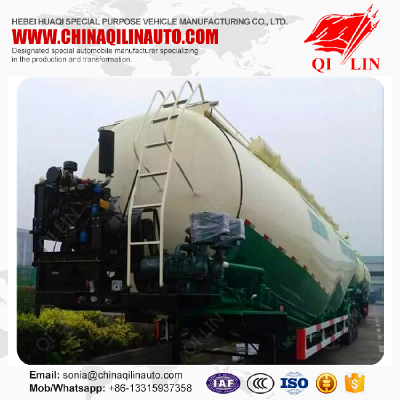

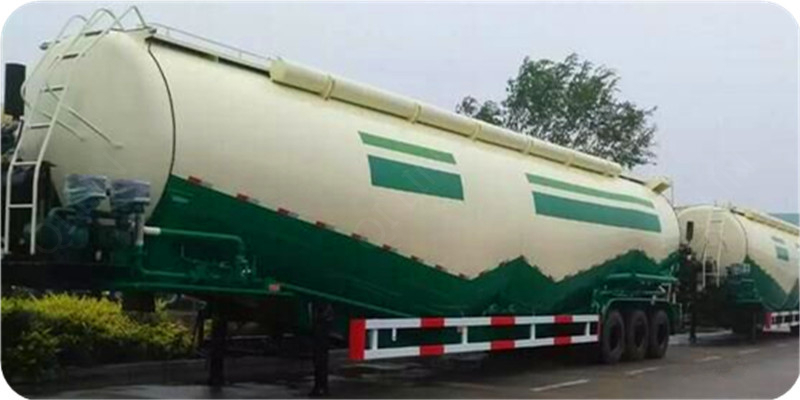

Factory price tanker trailer for bulk powder loading
Trade mark | Qilin Brand |
Model number | QLG9401GFL |
Function | Load coal ash |
Total weight | 40000kg |
Curb weight | 11500kg |
Max payload | 28500kg |
Tank volume | 50cbm |
Overall dimension | 13000mm*2500mm*3950mm |
Tank dimension | 11910mm*2470mm*3210mm |
Protective section material | Q235 steel |
Side protection connect type | Screw bolt |
Rear protection connect type | Welding |
Rear protective section dimension | 140mm*60mm |
Height of lower edge to ground | 550mm |
Axle load | 24000kg |
Number of axles | 3 pieces |
Wheelbase | 7930mm 1310mm 1310mm |
Rear tread | 1840mm/1840mm/1840mm |
Tire specification | 11.00R20 12PR,12R22.5 12PR |
Number of tires | 12 pieces |
Rim specification | 8.0-20/12,9.0-22.5/12 |
Departure angle | 33° |
Rear suspension | 1000mm |
Braking system | With ABS system(CM2XL-4S/2K(4S/2M)) |
Electrical system | 24 voltage,7 ways(7 wire harness) |
Light | LED type |
Painting | With shoot blasting and 4 layers painting,color is optional. |
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |
- Size: 50cbm
- Place of Origin: Hebei,China
- Brand Name: QI LIN
- Model Number: QLG9401GFL
- Weight: 11500.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
