- Size: 8.1cbm
- Place of Origin: Hebei
- Brand Name: QI LIN
- Model Number: QLG5120GYY
- Weight: 5300.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

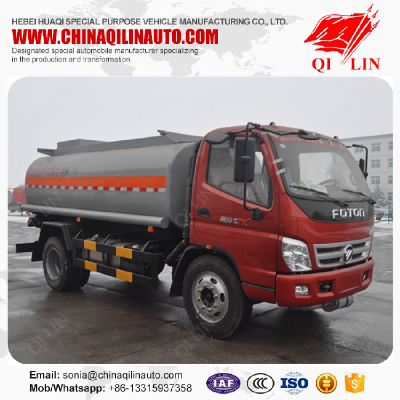

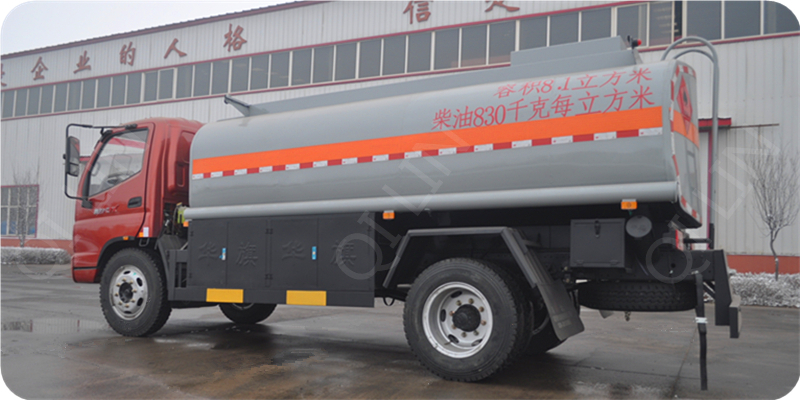

Good quality fuel tank truck with factory price
Trade mark | Qilin Brand |
Model number | QLG5120GYY |
Function | Load diesel/gasoline |
Total weight | 11990kg |
Curb weight | 5300kg |
Max payload | 6495kg |
Tank volume | 8.1cbm |
Overall dimension | 6950mm*2200mm*2800mm |
Tank dimension | 4800mm*1920mm*1280mm |
Tank material | Q235-A steel |
Connection type | Screw bolt |
Passengers allowed | 3 persons |
Rear protective section dimension | 60mm*200mm |
Height of lower edge to ground | 470mm |
Axle load | 4200kg/7790kg |
Number of axles | 2 pieces |
Wheelbase | 3800mm |
Front/rear tread | 1685mm/1615mm |
Tire specification | 8.25R20 16PR |
Number of tires | 6 pieces |
Front/rear suspension | 1120mm/2030mm |
Approach/departure angle | 22°/11° |
Fuel type | Diesel oil |
Max speed | 80km/h |
Braking system | With WABCO ABS system |
Electrical system | 24 voltage,7 ways(7 wire harness) |
Light | LED type |
Painting | Color is optional. |
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |
