- Size: 36.6cbm
- Place of Origin: Hebei
- Brand Name: QI LIN
- Model Number: QLG9400GRY
- Weight: 9300.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

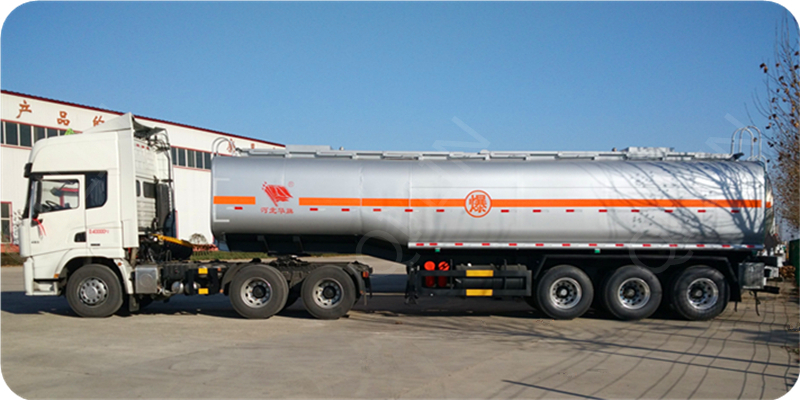

High quality tank semi trailer for flammable liquid loading
Trade mark | Qilin Brand |
Model number | QLG9400GRY |
Function | Load flammable liquid |
Total weight | 40000kg |
Curb weight | 9300kg |
Max payload | |
Tank volume | 36.6cbm |
Overall dimension | 11000mm*2500mm*3800mm |
Tank dimension | 10500mm*2490mm*1930mm |
Tank material | Q235 steel plate |
Tank type | Goose-neck type |
Side protection connection type | Screw bolt |
Rear protection connection type | Welding |
Rear protective section dimension | 140mm*60mm |
Height of lower edge to ground | 520mm |
Axle load | 24000kg |
Number of axles | 3 pieces |
Wheelbase | 5250mm 1310mm 1310mm |
Rear tread | 1840mm/1840mm/1840mm |
Tire specification | 11.00R20 12PR,12R22.5 12PR |
Number of tires | 12 pieces |
Rim specification | 8.0-20/12,9.0-22.5/12 |
Departure angle | 22° |
Rear suspension | 1630mm |
Braking system | With ABS system(HNABS4S/4M) |
Electrical system | 24 voltage,7 ways(7 wire harness) |
Light | LED type |
Painting | Color is optional. |
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |
