- Size: 70cbm
- Place of Origin: Hebei,China
- Brand Name: QI LIN
- Model Number: QLG9401GFL
- Weight: 12000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

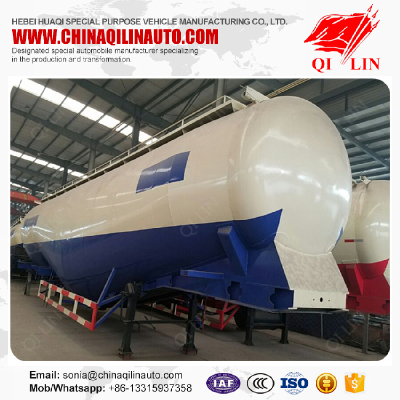

High quality tanker semi trailer for granular alkali loading
Trade mark | Qilin Brand |
Model number | QLG9401GFL |
Function | Load powder material |
Curb weight | 12 tons |
Max payload | 80 tons |
Tank volume | 70cbm |
Overall dimension | 12000mm*2500mm*3990mm |
Protective section material | Q235 steel |
Side protection connect type | Screw bolt |
Rear protection connect type | Welding |
Rear protective section dimension | 140mm*60mm |
Height of lower edge to ground | 550mm |
Axle load | 24000kg |
Axle specification | Fuwa 16T/3 pcs |
Wheelbase | 7930mm 1310mm 1310mm |
Rear tread | 1840mm/1840mm/1840mm |
Tire specification | 12.00R20/12pcs |
Departure angle | 33° |
Suspension | Mechanical suspension |
Braking system | |
Electrical system | 24 voltage,7 ways(7 wire harness) |
Light | LED type |
Painting | With shoot blasting,and 4 layers painting. |
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |
