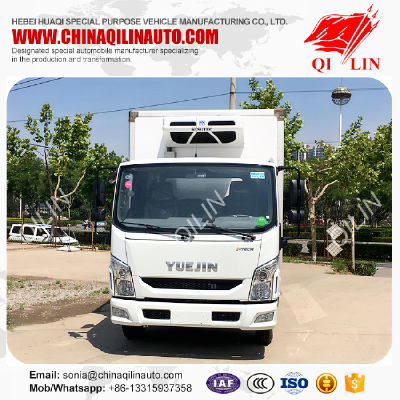

Muliti-temperature 3300mm wheelbase refrigerated van truck

Muliti-temperature 3300mm wheelbase refrigerated van truck

  • Min.Order Quantity: 1 Unit
  • Supply Ability: 300 Units per Month
  • Port: Tianjin
  • Payment Terms: L/C,D/P,T/T,Western Union
Get Latest Price:
  • *Quantity: Unit/Units
| Factory
Experience:2004-12-22
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  Hebei
  • Brand Name:  QI LIN
  • Model Number:  QLG5041XLC
  • Weight: 2845.000 kg

Muliti-temperature 3300mm wheelbase refrigerated van truck

Vehicle dimensions

Brand

QI LIN

Name

Refrigerated truck

Model

QLG5041XLC

Overall dimension

5995mmX2160mmX3080mm

Van dimension

4110mmX1940mmX2010mm

Bottom edge height

455mm

Gross weight

4490kg

Curb weight

2845kg

Max payload

1450kg

Chassis specifications

Chassis brand

Yuejin/Dongfeng/Foton/JAC(optional)

Drive type

Left/Right hand drive(optional)

Drive wheel

4X2

Transmission

Manual,5 forward gears,1 backward gear.

Cab

3 passengers

Tire

6.50-16LT 10PR/6pcs

Front/rear axle

1610kg/2880kg

Front/rear tread

1608mm/1223mm

Front/rear suspension

1080mm/1446mm

Wheelbase

3308mm

Approach/departure angle

19°/16°

Leaf spring number

8/8 7

Engine

Sofim/Commins/Yuchai/Chaochai(optional)

Emission

Euro 2/3/4/5(optional)

Displacement

2798ml

Horse power

123hp

Braking system

With ABS system

Max speed

95km/h

Fuel type

Diesel

Electrical system

24 voltage,7 wire harness,LED lights.

Painting

With shot blasting and 4 layers painting,color is optional.

Remark

1.The above mentioned data is for your reference only.

2.The detailed specification will be subject to our final confirmation.


Packaging & Shipping

1.Nude,polish with water wax before shipment.

2.40HQ,Ro-Ro ship and bulk ship transport.


Our Services

1.Our engineer will go to your side when the semi trailer goes something wrong.
2.Any parts of the semi trailer will be send to you as soon as possible.
3.Technology consulting are appreciated all the time.
4.After-sale service:
a.Within one year(from the date of delivery, in the normal use of the range, within 10000km): Free of charge to provide spare parts,not including wearing parts and electrical parts,transport costs are borne by the buyer;
b.More than one year: Only to charge the cost of spare parts, transport costs are borne by the buyer;
c.Tracking service life: Life time.


Company Introduction

1.Hebei Huaqi Special Purpose Vehicle Manufacturing Co., Ltd. was established in 1956,with more than 60 years trailer making experiences.

2.We have more than 300 employees,including 24 technical engineers,18 senior engineers.

3.We are one of the largest manufacturers in China,we have passed ISO9001:2008,CCC,SGS,UL certificates.

4."Qi Lin" Brand is a famous brand in Hebei province ,China.


Welcome you to visit our factory !

1.We can pick up you in the airport port;
2.Book the hotel for you;

3.Show you around the workshop and production line;
4.We can supply the truck parts;
5.We can supply the stock trucks if you need the trucks urgently.


FAQ

1. Can I have samples of this type of trailer to test the quality?

Yes, you can buy any sample to test the quality,our MOQ is 1 unit.



2. What's the delivery time and can you lower the price?

It depends on your order. The delivery time is within 15 workdays after we received your prepayment. If you have place an order of large quantities, then ,of course, the price can be lowered.



3. Can you supply some quick-wear trailer parts?

Yes, we can supply  the trailer parts as your request,such as traction, traction pin, balance beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads, brake pan, bearings, etc



4. What's the payment method?

TT 30% as deposit, balance before shipment by TT or L/C at sight.



5.Do you have any used trailer for sale?

We have many trailers in stock for choices, from 2012-2016 year, the price are favorable,we'll show you our stock trailer if you need.



6. How to guarantee customers get the goods smoothly after they pay?

Don’t worry, dear. We joined the trade assurance,you can place the order by trade assurance,if we don’t delivery products, the deposit will return to you.



7. How can you ensure the quality of the products?

Don’t worry, dear. We joined the trade assurance,if the products have quality problem when you received the goods, you can receive advance payments.
