- Place of Origin: Hebei,China
- Brand Name: QI LIN
- Model Number: QLG9403CCY
- Weight: 7000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

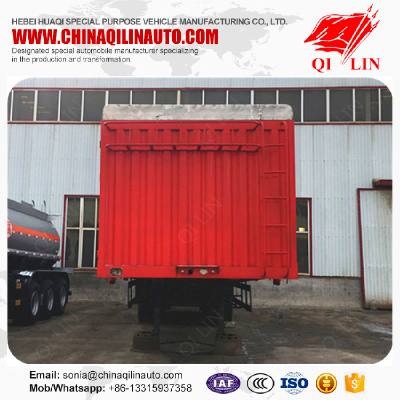

Red color storage fence semi trailer for bulk cargo loading
Qi Lin | |
Model | |
Function | Load container or bulk cargo |
Gross weight | 40tons |
Curb weight | 7tons |
Max payload | 33tons |
Overall dimension | 13000mm*2500mm*3800mm |
Wagon box dimension | 12850mm*2400mm*600mm |
Protective section material | Q235 steel |
Side protection connect type | Welding |
Rear protection connect type | |
Rear protective section dimension | 120mm*60mm |
Height of lower edge to ground | 520mm |
Axle load | 24tons |
Number of axles | 3 pieces |
Wheelbase | 6590mm 1305mm 1305mm |
Rear tread | 1840mm/1840mm/1840mm |
Tire specification | 12R22.5 12PR |
Number of tires | 12 piece |
Rim specification | 9.0-22.5/12 |
Departure angle | 15° |
Rear suspension | 2400mm |
Braking system | With ABS system(CM2XL-4S/2M) |
Electrical system | 24 voltage,7 ways(7 wire harness) |
Light | LED type |
Painting | With shot blasting,and 4 layers painting,color is optional. |
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |
