- Size: 47cbm
- Place of Origin: Hebei,China
- Brand Name: QI LIN
- Model Number: QLG9403GHYK
- Weight: 11000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

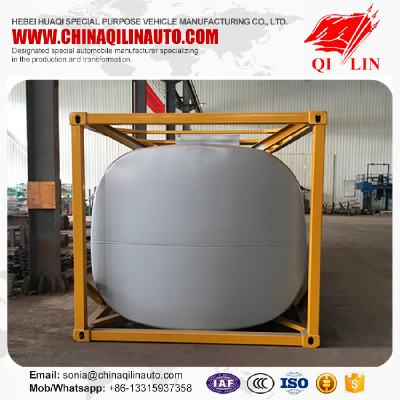

Skeleton frame enclosed chemical liquids transport tanker trailer
Trade mark | Qilin Brand |
Model number | QLG9403GHYK |
Function | Load chemical liquids |
Total weight | 40000kg |
Curb weight | 11000kg |
Max payload | 29000kg |
Tank volume | 47cbm |
Overall dimension | 12450mm*2500mm*3990mm |
Tank dimension | 11780mm*2180mm*2040mm |
Tank material | Q235 steel plate |
Tank type | Goose-neck type |
Side protection connect type | Screw bolt |
Rear protection connect type | Welding |
Rear protective section dimension | 140mm*60mm |
Height of lower edge to ground | 500mm |
Axle load | 24000kg |
Number of axles | 3 pieces |
Wheelbase | 6350mm 1305mm 1305mm |
Rear tread | 1840mm/1840mm/1840mm |
Tire specification | 11.00R20 12PR,12R22.5 12PR |
Number of tires | 12 pieces |
Rim specification | 8.0-20/12,9.0-22.5/12 |
Departure angle | 14° |
Rear suspension | 19900mm |
Braking system | With ABS system(4S/2M) |
Electrical system | 24 voltage,7 ways(7 wire harness) |
Light | LED type |
Painting | With shoot blasting and 4 layers painting,color is optional. |
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |
