- Guaranteed Secure Payments on Every Order
- Refund if your item is not delivered or as described
- Buyer Protection after order confirmation
- Size: 40cbm
- Place of Origin: Hebei,China
- Brand Name: QI LIN
- Model Number: QLG9404GSY
- Weight: 9500.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

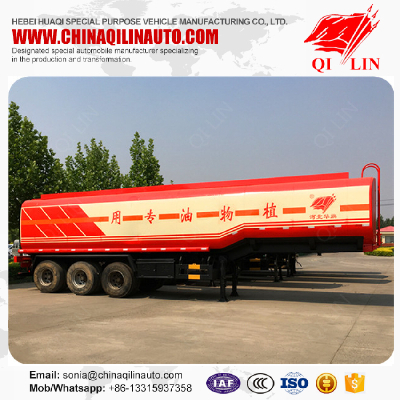

Top quality 40cbm vegetable oil tanker semi trailer
Trade mark | Qilin Brand |
Model number | QLG9404GSY |
Function | Load edible oil |
Total weight | 40tons |
Curb weight | 9.5tons |
Max payload | 30.5tons |
Tank volume | 40cbm |
Overall dimension | 13000mm*2490mm*3900mm |
Tank dimension | 8550mm*2490mm*1630mm |
Side protection connect type | Screw bolt |
Rear protection connect type | Welding |
Rear protective section dimension | 140mm*60mm |
Height of lower edge to ground | 500mm |
Axle load | 24tons |
Number of axles | 3 pieces |
Wheelbase | 7000mm 1305mm 1305mm |
Rear tread | 1840mm/1840mm/1840mm |
Tire specification | 11.00R20 12PR,11R22.5 12PR,12R22.5 12PR |
Number of tires | 12 pieces |
Rim specification | 8.0-20/12, 8.25-22.5/12, 9.0-22.5/12 |
Departure angle | 22° |
Rear suspension | 1650mm |
Braking system | |
Electrical system | 24 voltage,7 ways(7 wire harness) |
Light | LED type |
Painting | With shot blasting and 4 layers painting,color is optional. |
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |
- Size: 40cbm
- Place of Origin: Hebei,China
- Brand Name: QI LIN
- Model Number: QLG9404GSY
- Weight: 9500.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
