- Size: 18.3
- Place of Origin: Hebei,China
- Brand Name: QI LIN
- Model Number: QLG9405GFW
- Weight: 8000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

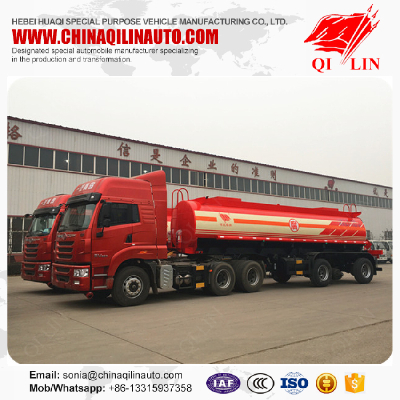

Total weight 40 tons corrosive goods transport tanker trailer
Brand | Qi Lin |
Model | QLG9405GFW |
Usage | |
Total weight | 40000kg |
Tare weight | 8000kg |
Max payload | 32000kg |
Tank volume | 18.3cbm |
Tank material | Stainless steel |
Overall dimension | 9800mm*2500mm*3600mm |
Tank dimension | 9000mm*1700mm*1700mm |
Side protective device | Q235 steel,screw bolt connection |
Rear protective device | Q235 steel,welding connection |
Bottom edge height | 530mm |
Axle | 24000kg payload/3pcs |
Tire | 11.00R20 12PR,12R22.5 12PR/12pcs |
Leaf spring number | -/10/10/10,-/9/9/9,-/13/13/13 |
Wheelbase | 4580mm 1310mm 1310mm |
Rear tread | 1840mm/1840mm/1840mm |
Rear suspension | 1300mm |
Departure angle | 23° |
Braking system | With ABS system(CM2XL-4S/2M) |
Electrical system | 24 voltage,7 wire harness. |
Light | LED type |
Painting | With shot blasting and 4 layers painting,color is optional. |
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |
