- Size: 48cbm
- Place of Origin: Hebei
- Brand Name: QI LIN
- Model Number: QLG9401TGL
- Weight: 7000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

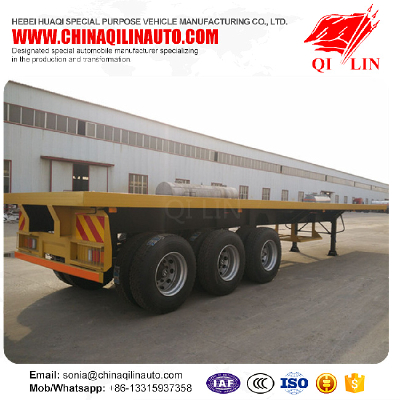

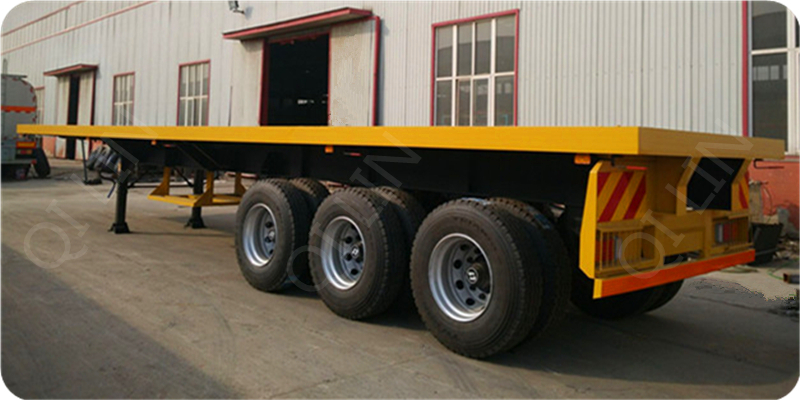

Tri-axle 35T payload container flatbed semi trailer for sale
Dimension | |
Trailer model | QL9400TJZ |
Function | Load 2*20ft or 1*40ft container |
Overall dimension | 12350mm*2500mm*1550mm |
Max payload | 35000kg |
Curb weight | 7000kg |
Platform | 3mm steel checkered plate |
Main beam | The height of the beam is 500mm,upper plate is 14mm, down plate is 16mm,middle plate is 8 mm. |
Cross beam | 100mm channel steel |
Side beam | 160mm channel steel |
Running construction | |
Axle | YLT 12T |
Number of axles | 3 pieces |
Tire | Triangle 12R22.5 |
Number of tires | 12 pieces |
Rim | 8.5-22.5 /12 pcs |
Twist lock | 12 pieces |
Kingpin | Interchangeable 90# /50# |
Leaf spring | 90mm*13mm*10pieces/6sets |
Landing gear | 28T made in China |
Suspension | Mechanical suspension |
Diesel tank | 1000L |
Tool box | 1 piece |
Braking system | With WABCO ABS system |
Electrical system | 24 voltage |
7 ways(7 wire harness) | |
Light | LED type |
Packing | Nude,polish with wax before Shipment. |
Painting | Color is optional. |
Remark | The above mentioned data is for your reference only. |
The detailed specification will be subject to our final confirmation. | |
