- Place of Origin: Hebei
- Brand Name: QI LIN
- Model Number: QLG9401TGL
- Weight: 10000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

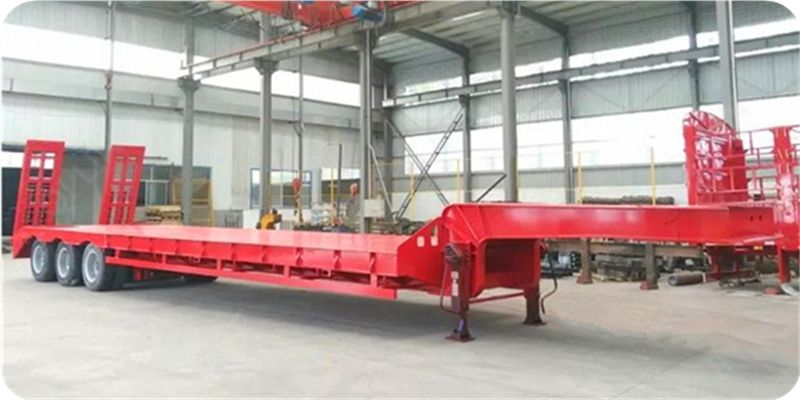

Tri-axle low bed semi trailer with hydraulic ladder control system
Dimension | |
Trailer model | QLG9401TGL |
Overall dimension | 12000mm*3200mm*1750mm |
Platform height | 1100mm |
Effective platform | 7940mm length |
Main beam | The height of main beam is 500mm,The upper/down plate is 20 mm, width is 140mm.the middle plate is 10mm |
Side beam | 250mm I-beam |
Cross beam | 16# I-beam |
Platform | 4mm checkered plate |
Max payload | 60 tons |
Frame and running construction | |
Axle | FUWA 13T / 3 pieces |
Tire | Triangle 8.25R20/ 12 pieces |
Rim | 6.5-20/ 12 pieces |
Leaf-spring | 90mmwidth*10pieces*13mm/6 sets |
Kingpin | Interchangeable 50# & 90# |
Landing gear | 28T standard made in China |
Hydraulic system | 1 set to control rear ladder |

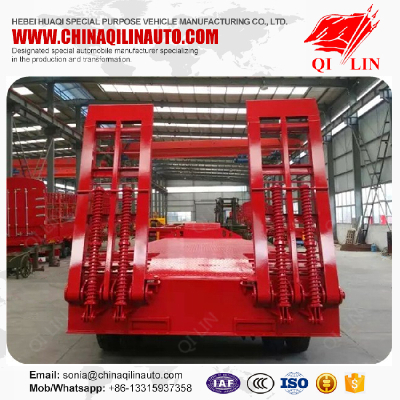

Rear ladder | 1 set |
Suspension | Mechanical suspension |
Electrical and braking system | |
Electrical system | 24 volt electrical system. LED lights, 7 pin electrical connector. Parking .stop,reverse,number plate and indicator lights. rear lights conform to European standard, rear front and side reflectors. |
Color | Optional |
with ABS system made in China | |
Packing | Nude,Polish with wax before shipment. |
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |
